SKU: V11H744041

EB-685W

Best for professional environments. Versatile 3LCD projector for business and education use.

  • HD-ready WXGA resolution
  • 3,500-lumen image
  • Optional wireless connectivity

Features

Up to 100-inch display and outstanding quality

HD-ready WXGA resolution with Epson 3LCD technology

Reliable

Improved reliability and a longer lamp life

Wireless Connectivity (Optional)

Allows content to be shown from a range of devices

Long lamp life

Up to 10,000 hours in eco mode

Specifications

Projector Colour
White / Grey
Loudspeaker
16 W
Noise Level -Normal
35 dB (A)
Noise Level -Economy
30 dB (A)
Noise Level - Eco2
29
Options
Connection and control box

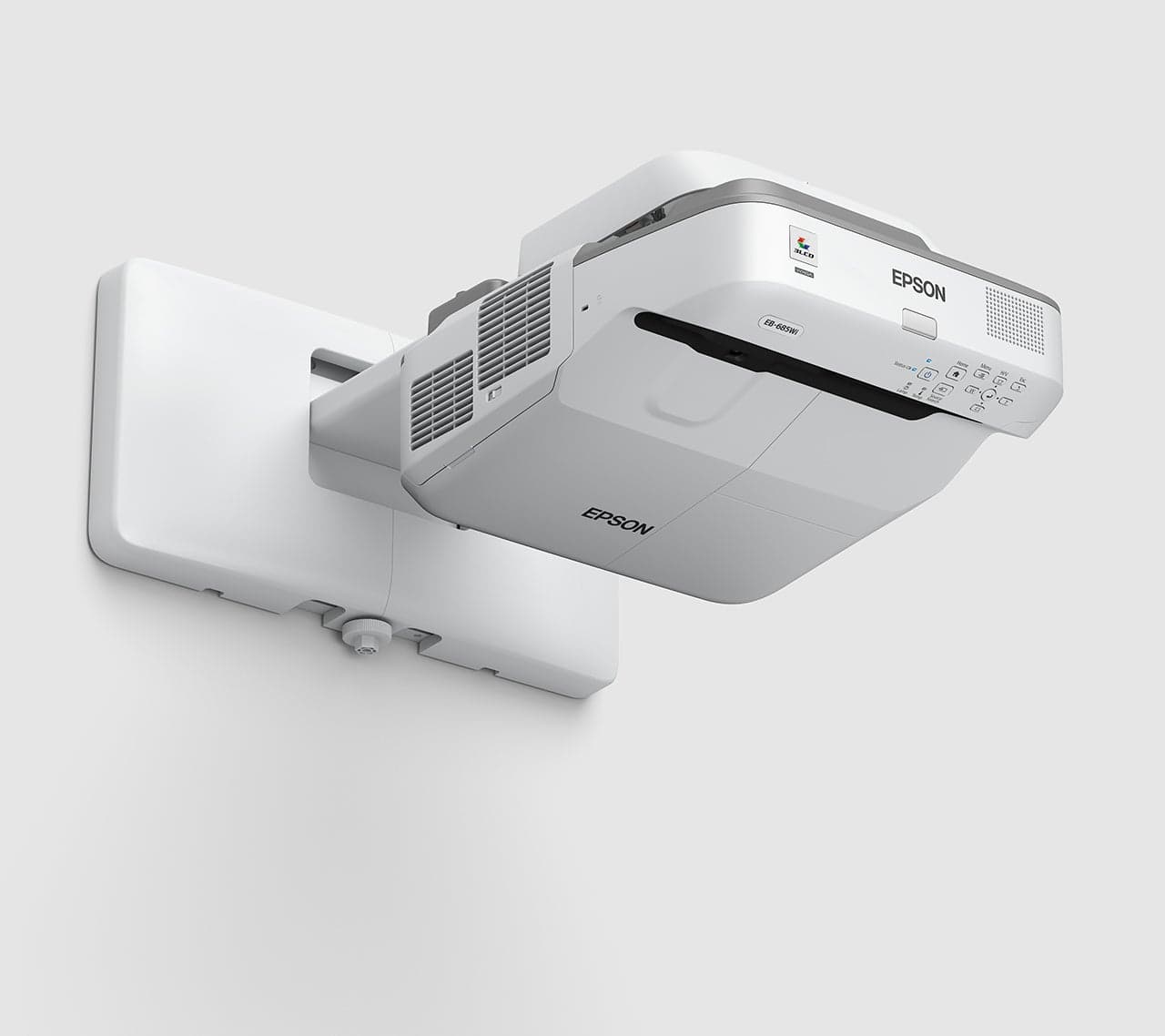

Positioning
Wall Mounted
Power consumption -(Normal On-Mode)
301 W
Power consumption- (Eco On-Mode)
354 W
Power consumption -(Normal Peak-mode)
309 W
Power consumption -(Eco Peak-Mode)
0.37 W
Power consumption - (Energy saving standby)
258 W
Product Dimensions
367 x 400 x 149 mm (Width x Depth x Height)
Product Range
E9
Room Type / Application
Meeting room / Classroom
Single Unit
ZN
Supply Voltage
100 V - 240 V, 50 Hz - 60 Hz
Supported Humidity - Operation (from)
20 %
Supported Humidity - Operation (to)
80 %
Supported Humidity - Storage (from)
10 %
Supported Humidity - Storage (to)
90 %
Supported Temperature - Operation (from)
5
Supported Temperature - Operation (to)
40
Supported Temperature - Storage (from)
-10 °C
Supported Temperature - Storage (to)
60 °C
TCO Certified
No

Downloads and Support

Brochures

Download

Datasheets

Download

Safety Data Sheets

Download

Drivers

Download

- Colour Brightness (Colour Light Output) measured in accordance with IDMS 15.4. Colour Brightness will vary depending on usage conditions. Leading Epson 3LCD business and education projectors compared to leading one-chip DLP projectors, based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013. For more information please visit www.epson.eu/CLO2 -iProjection App available on Android and iOS devices, and Google Chromebooks.1
