SKU: V11HB04980DA

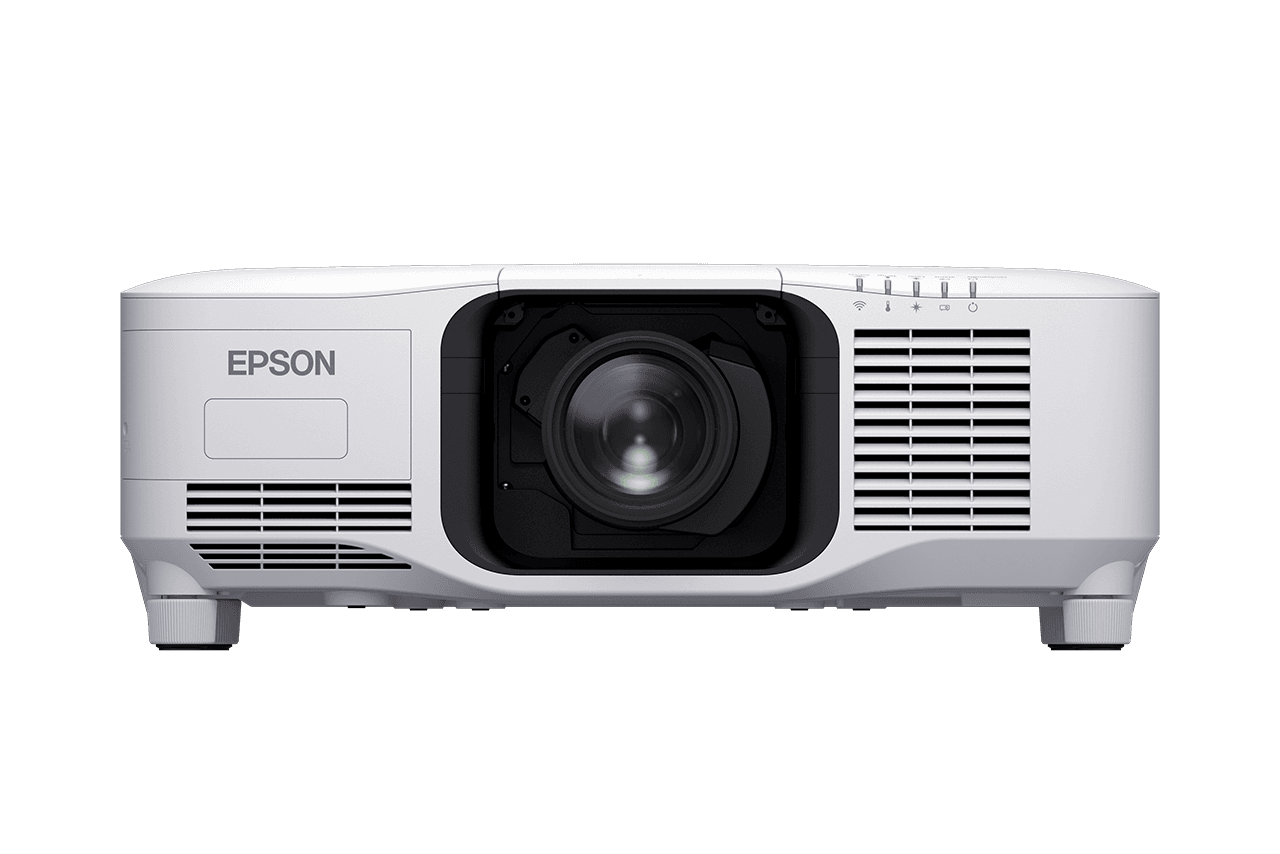

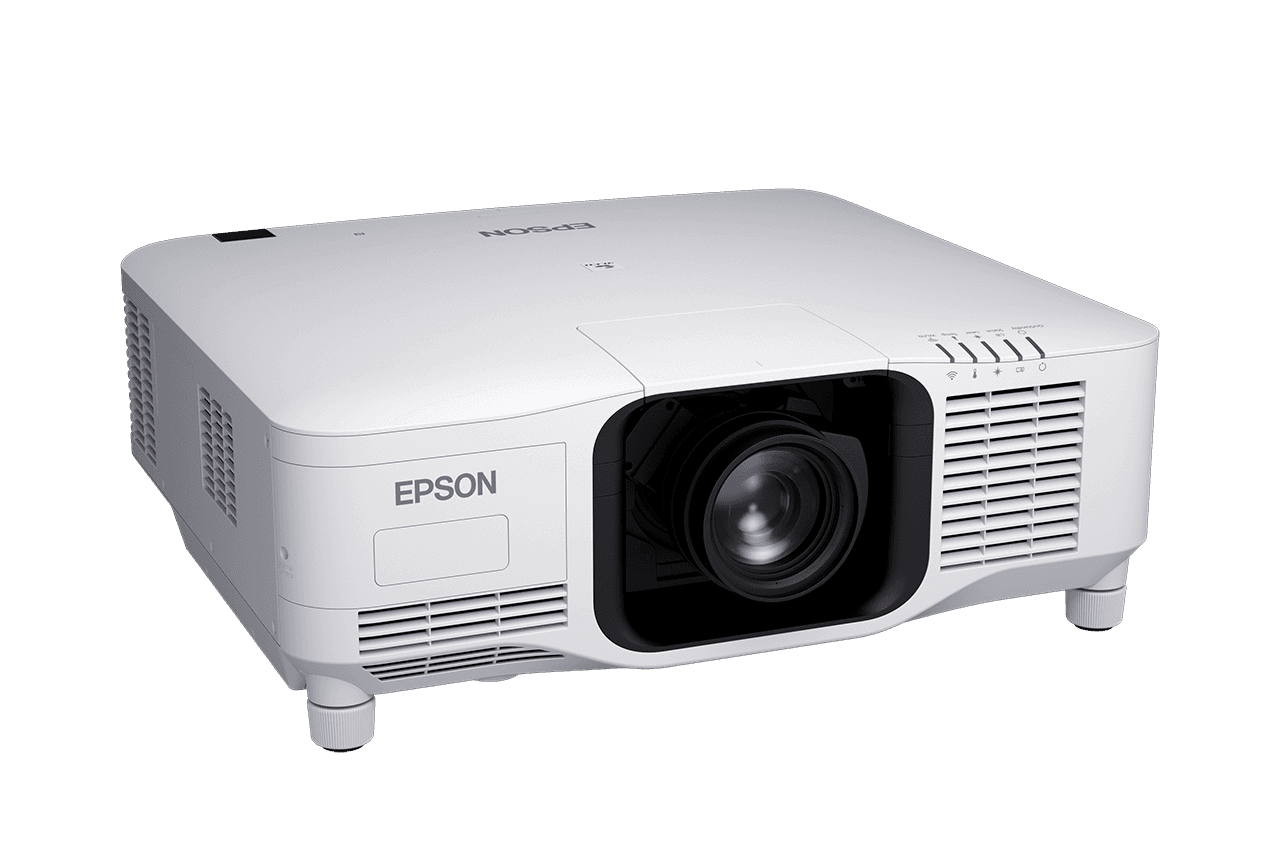

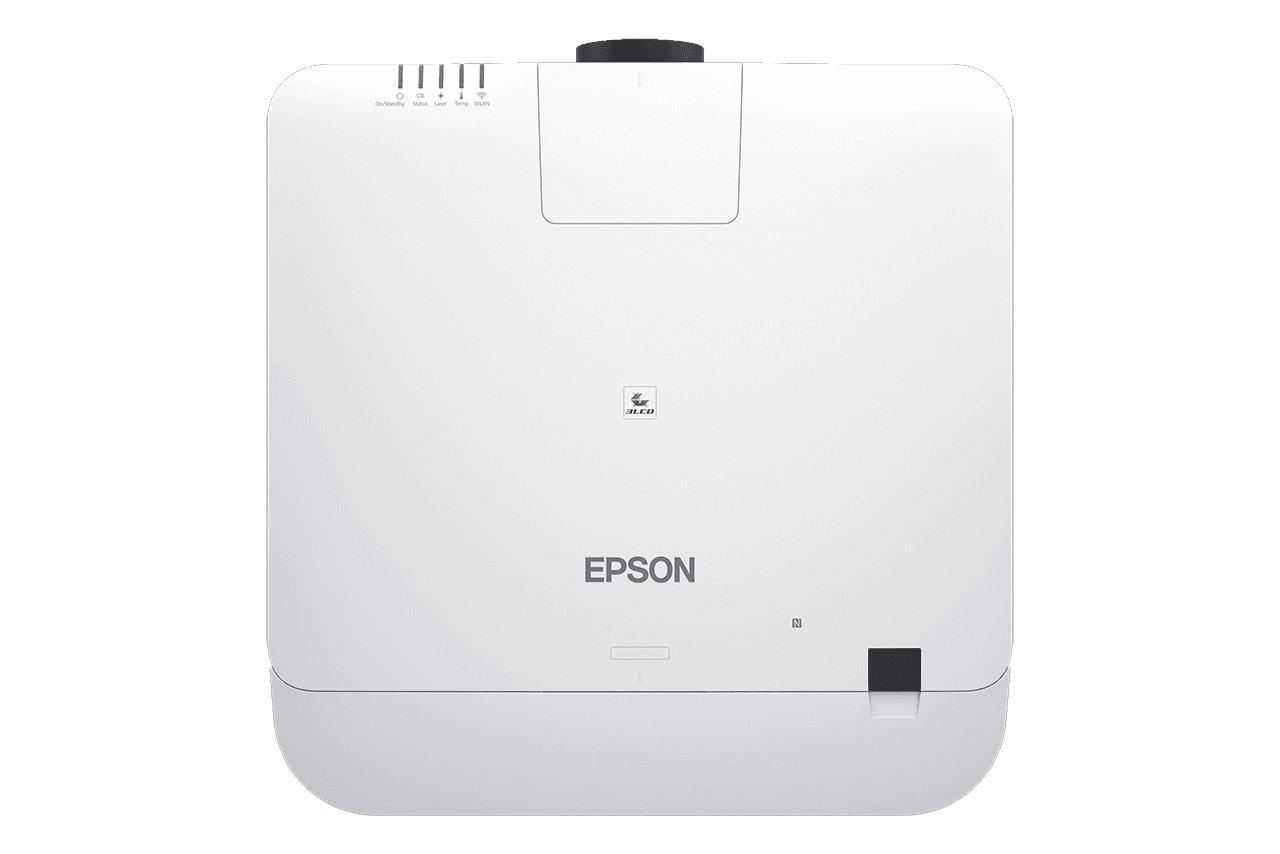

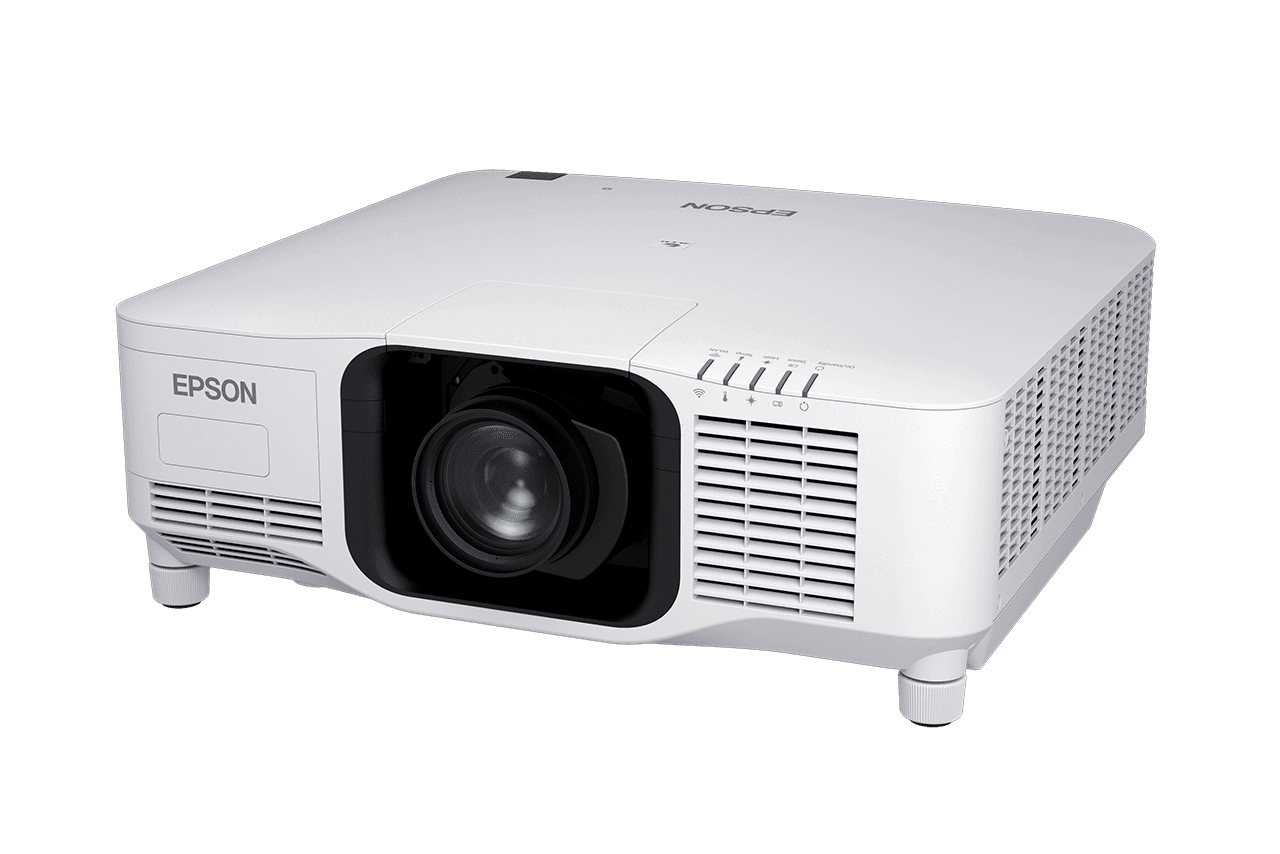

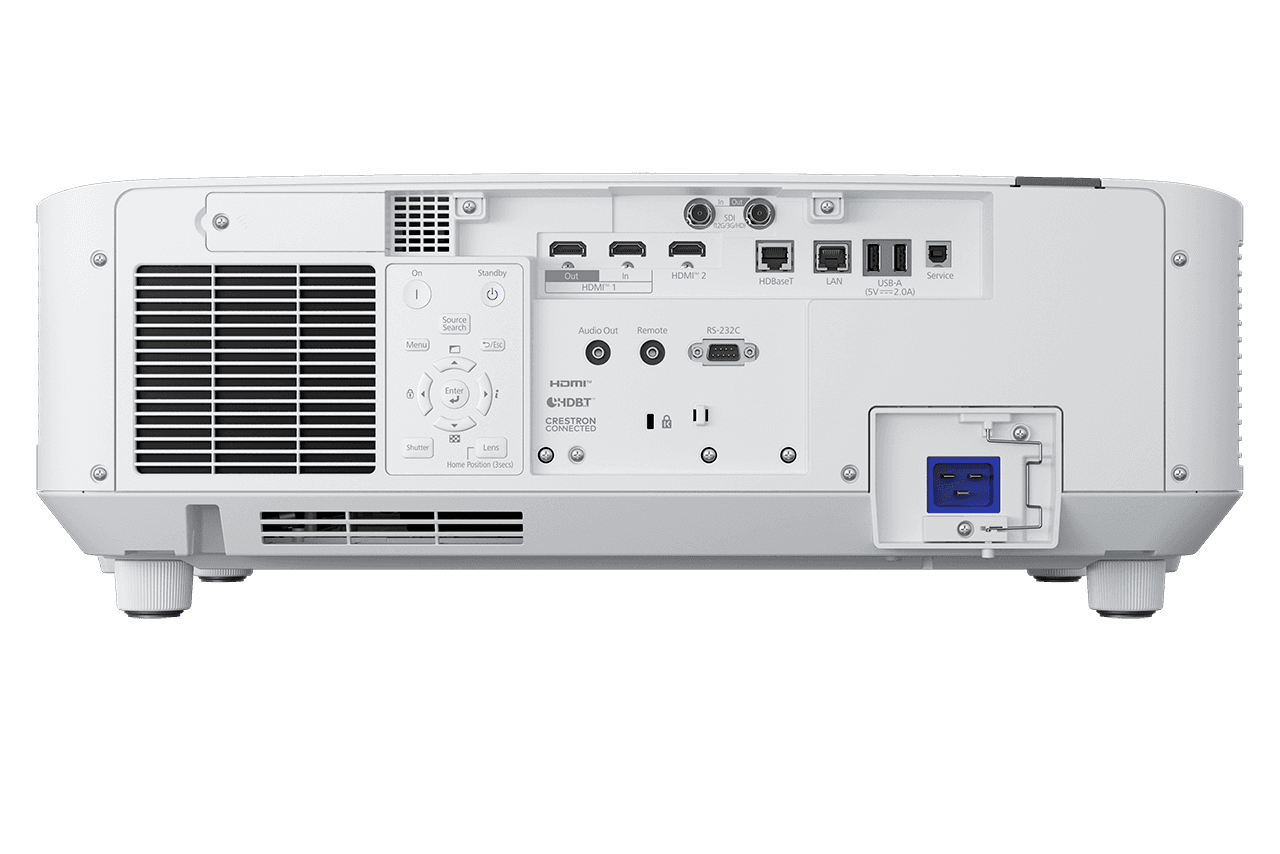

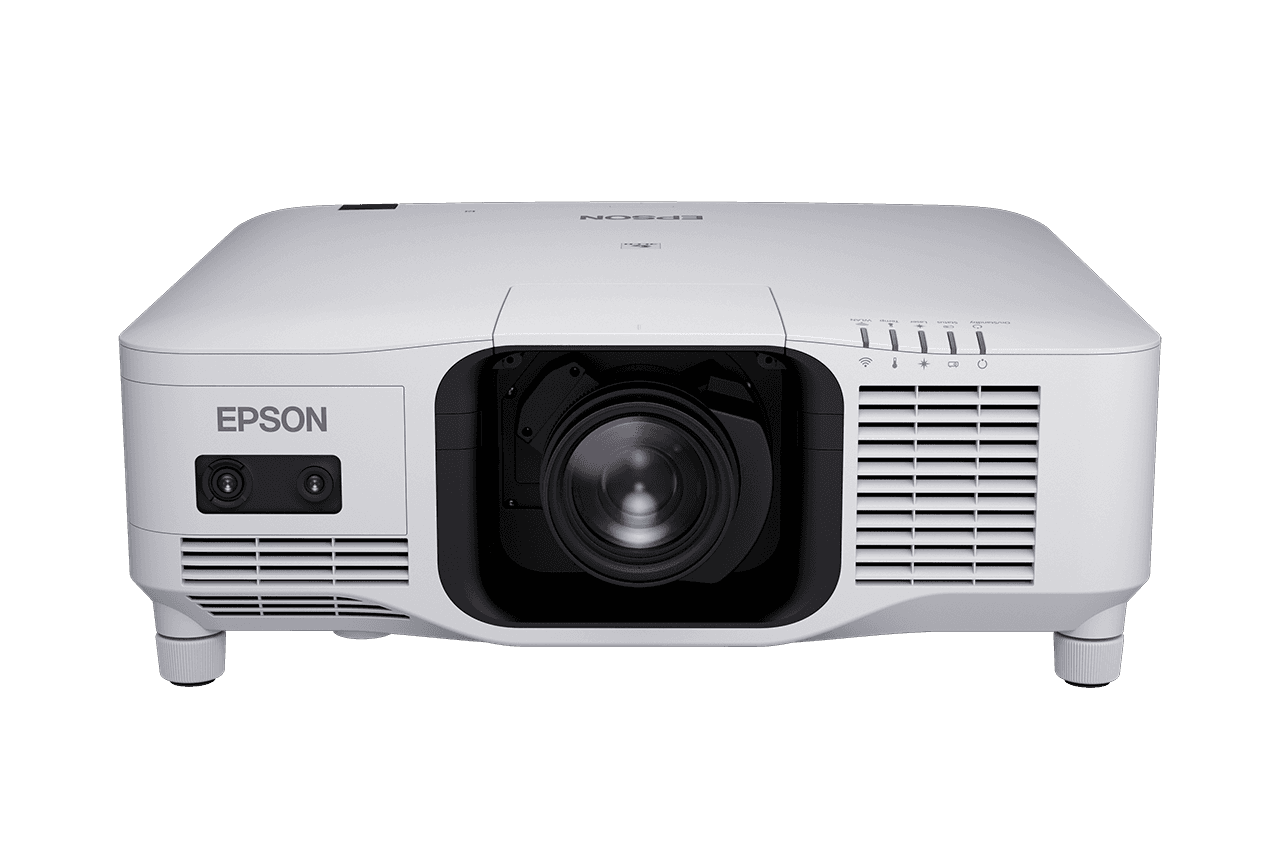

EB-PQ2216W

Best for 4K installations and experiences. Compact 16,000-lumen 4K 3LCD laser projector with Crystal Motion technology.

  • 16,000lm
  • 4K Crystal Motion
  • Flexible installation

Features

Patented 4K and imaging technology

Outstanding 4K image quality delivers superb immersivity

Ultra-compact and lightweight

Small, powerful 16,000lm 4K projector

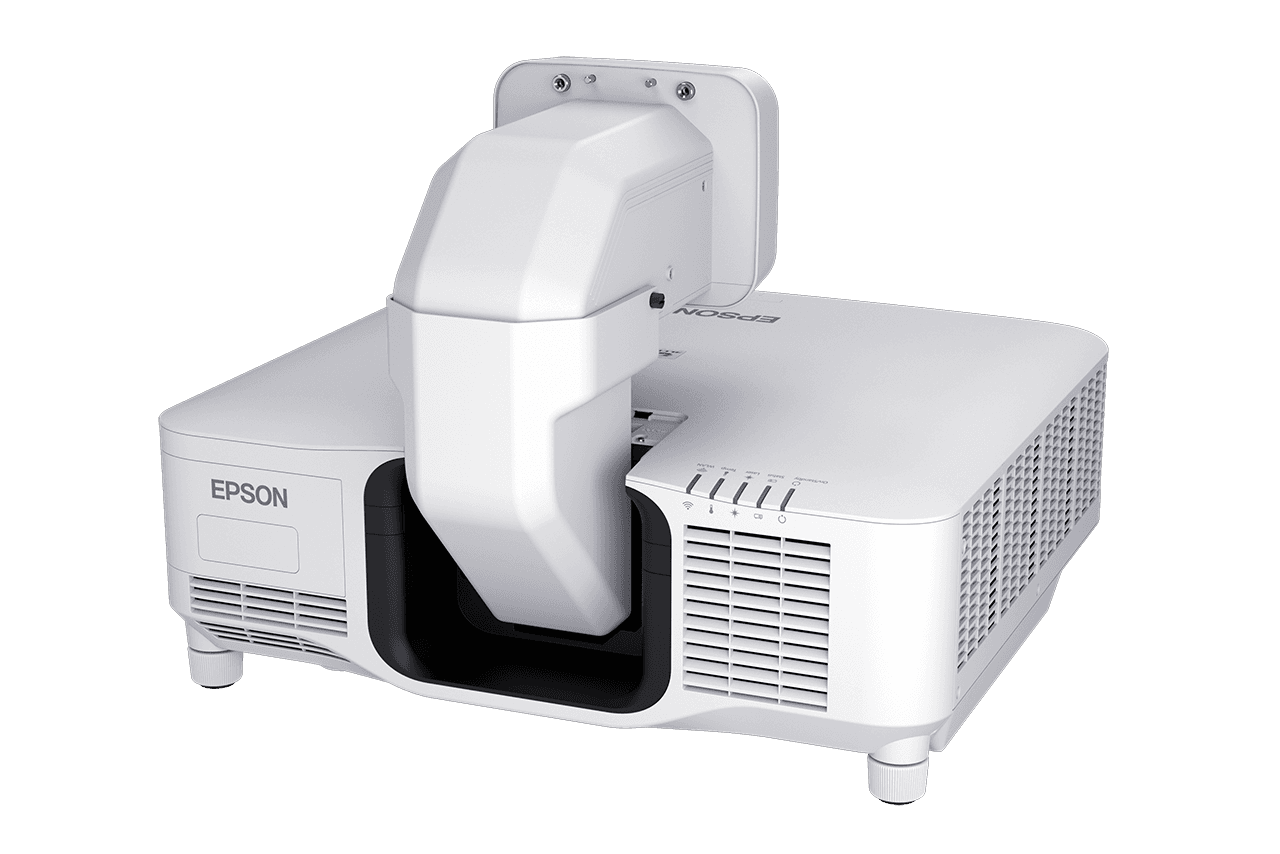

Cross-platform lens compatibility

Lets you build the optimal projection solution for every requirement

Fit-and-forget reliability

Filter-free design and IP5X dust resistance1

Specifications

Projector Colour
White
Heat Dissipation
3788 BTUperhour
Noise Level -Normal
44 dB (A)
Noise Level -Economy
36 dB (A)
Noise Level - Eco2
0
Options

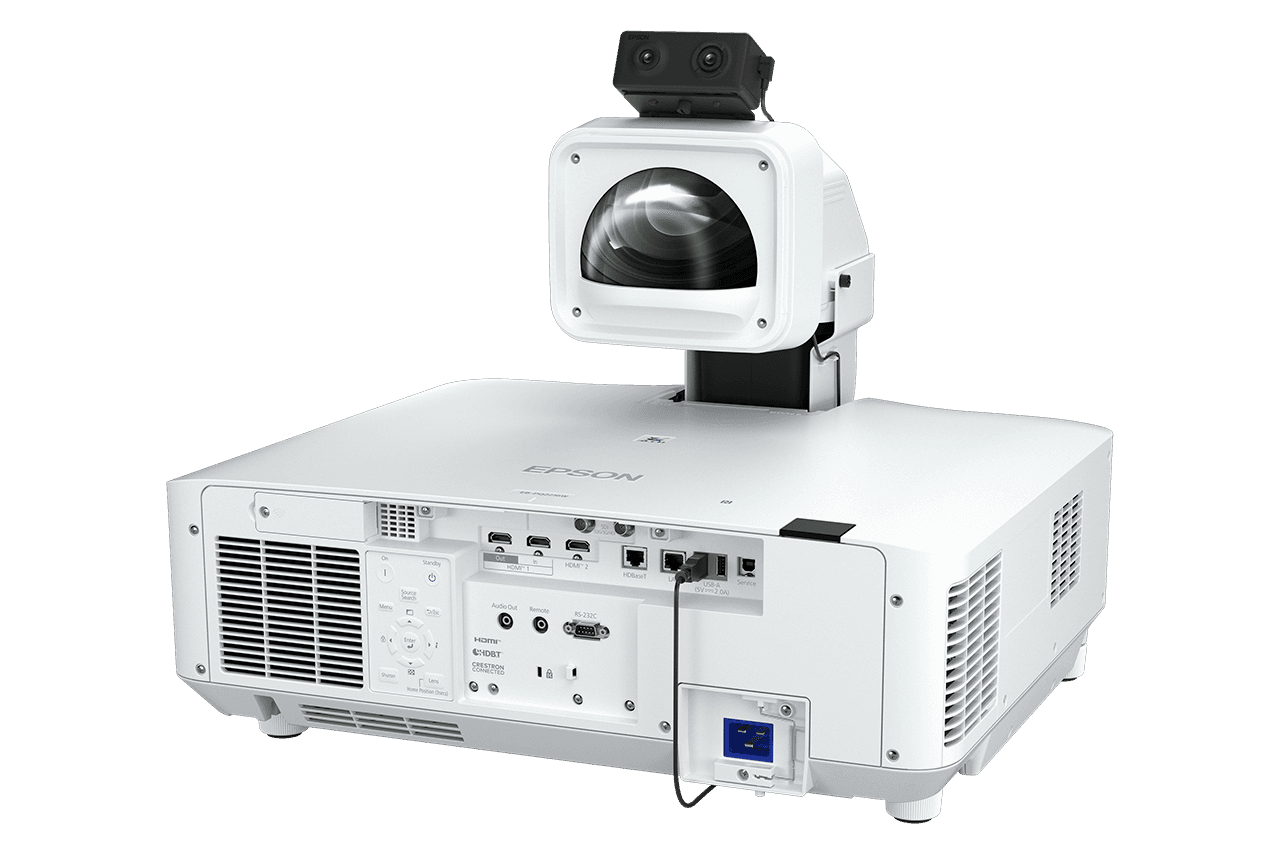

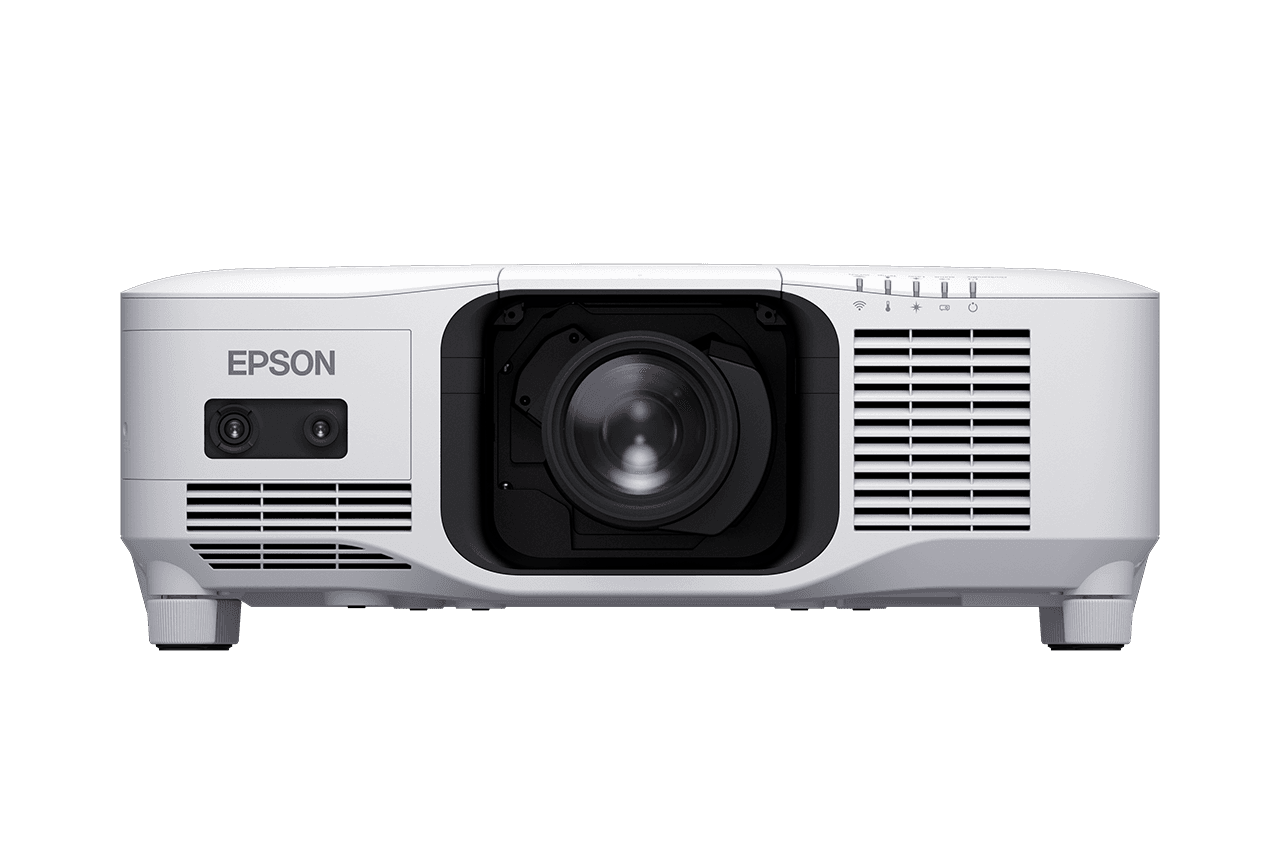

Camera module
Positioning
Ceiling Mounted
Power consumption -(Normal On-Mode)
1003 W
Power consumption- (Eco On-Mode)
1114 W
Power consumption -(Normal Peak-mode)
784 W
Power consumption -(Eco Peak-Mode)
0.5 W
Product Dimensions
586 x 492 x 218 mm (Width x Depth x Height)
Product Range
PQ
Room Type / Application
Large Meeting Room / Auditorium
Single Unit
ZN
Supply Voltage
100 V - 240 V, 50 Hz - 60 Hz
Supported Humidity - Operation (from)
20 %
Supported Humidity - Operation (to)
80 %
Supported Humidity - Storage (from)
10 %
Supported Humidity - Storage (to)
90 %
Supported Temperature - Operation (from)
0
Supported Temperature - Operation (to)
50
Supported Temperature - Storage (from)
-10 °C
Supported Temperature - Storage (to)
60 °C
TCO Certified
No

Downloads and Support

Brochures

Download

Datasheets

Download

Drivers

Download

Installation Support

Set Up Your Product

IP5X certified in accordance with IEC Standard 60529. The IP5X certification is applied to the optical engine and light source module.1

4K (3840 x 2160) is the maximum physical resolution achieved using 4K Crystal Motion technology.2

Energy efficient based on the power consumption data publicly available for comparable market leading products. Reductions in packaging and transportation requirements assumed based on physical product size and weight and/or packaging size and weight data available for comparable market leading products. As of February 2024.3
