SKU: V11HA80080DA

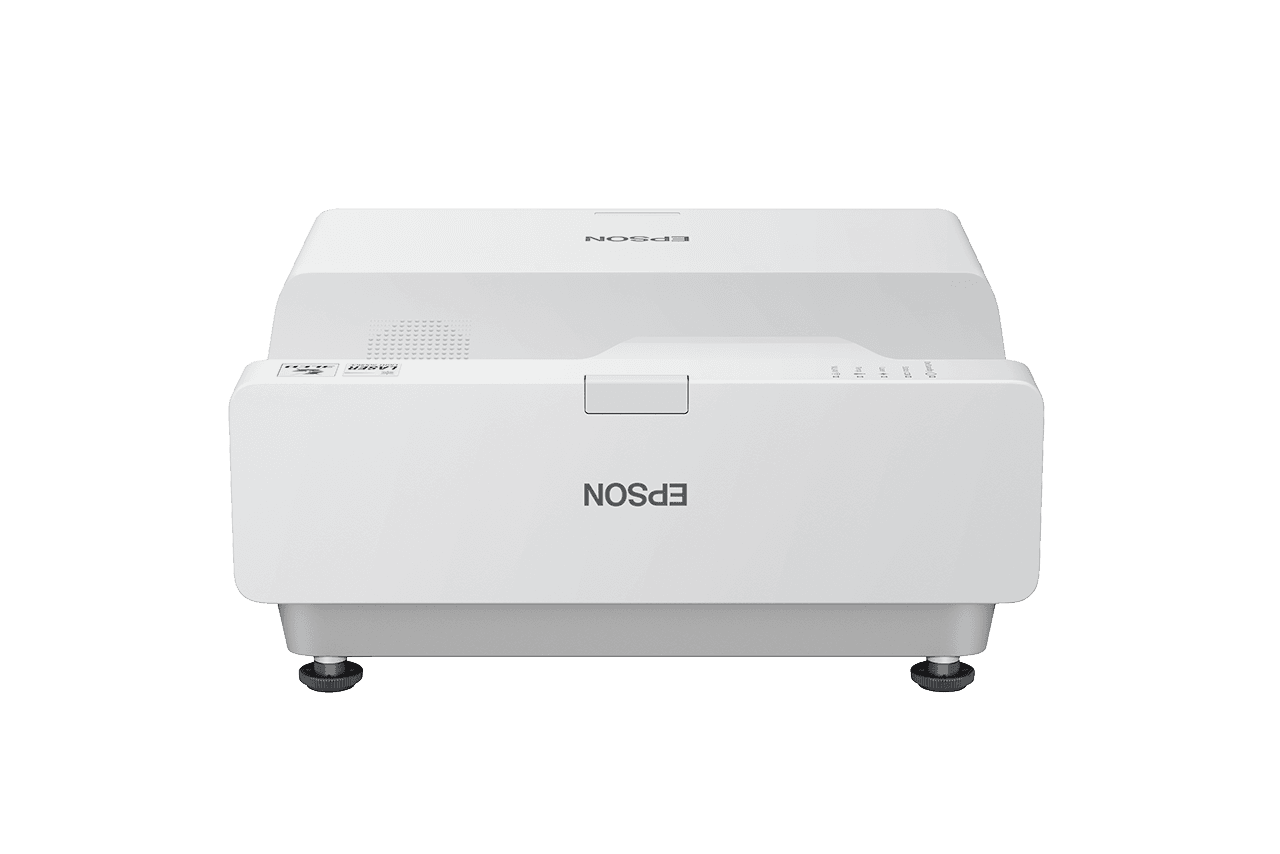

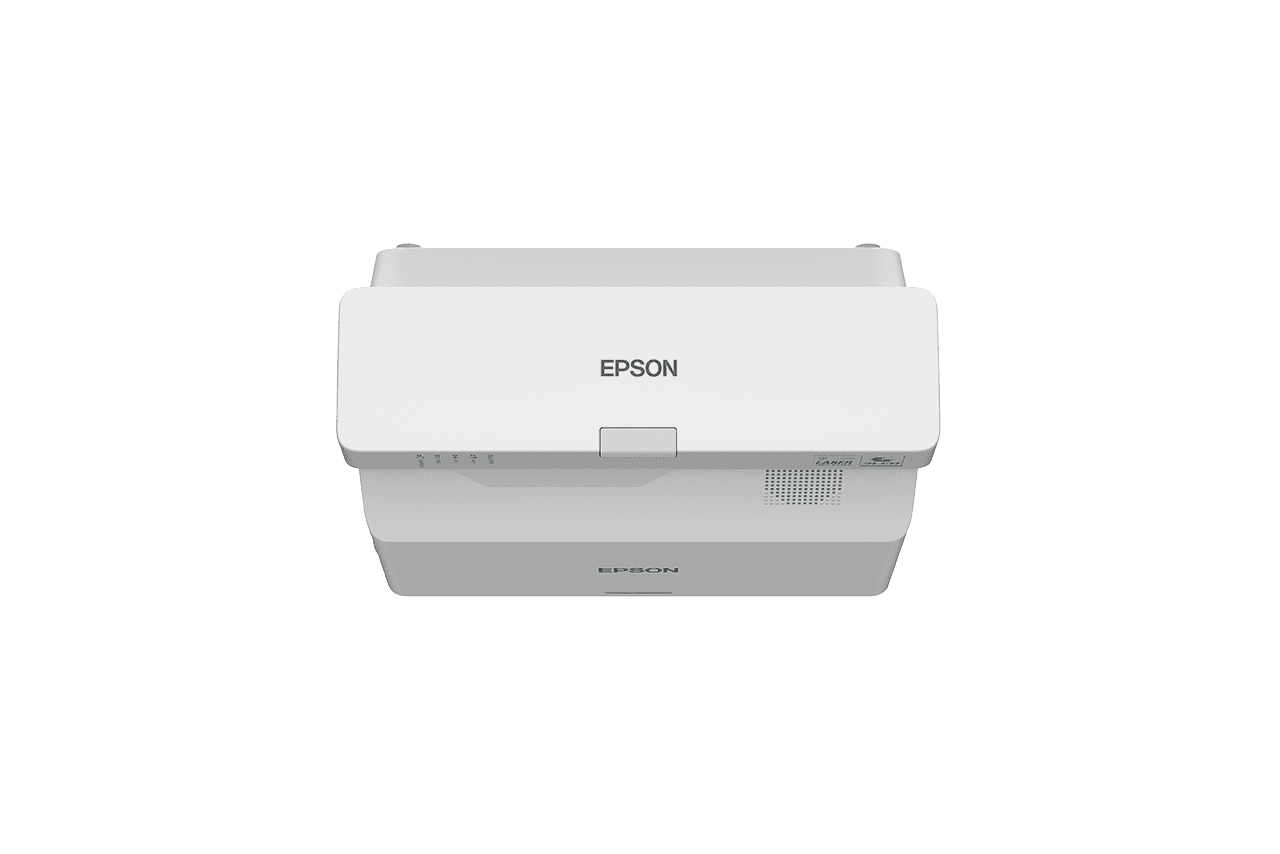

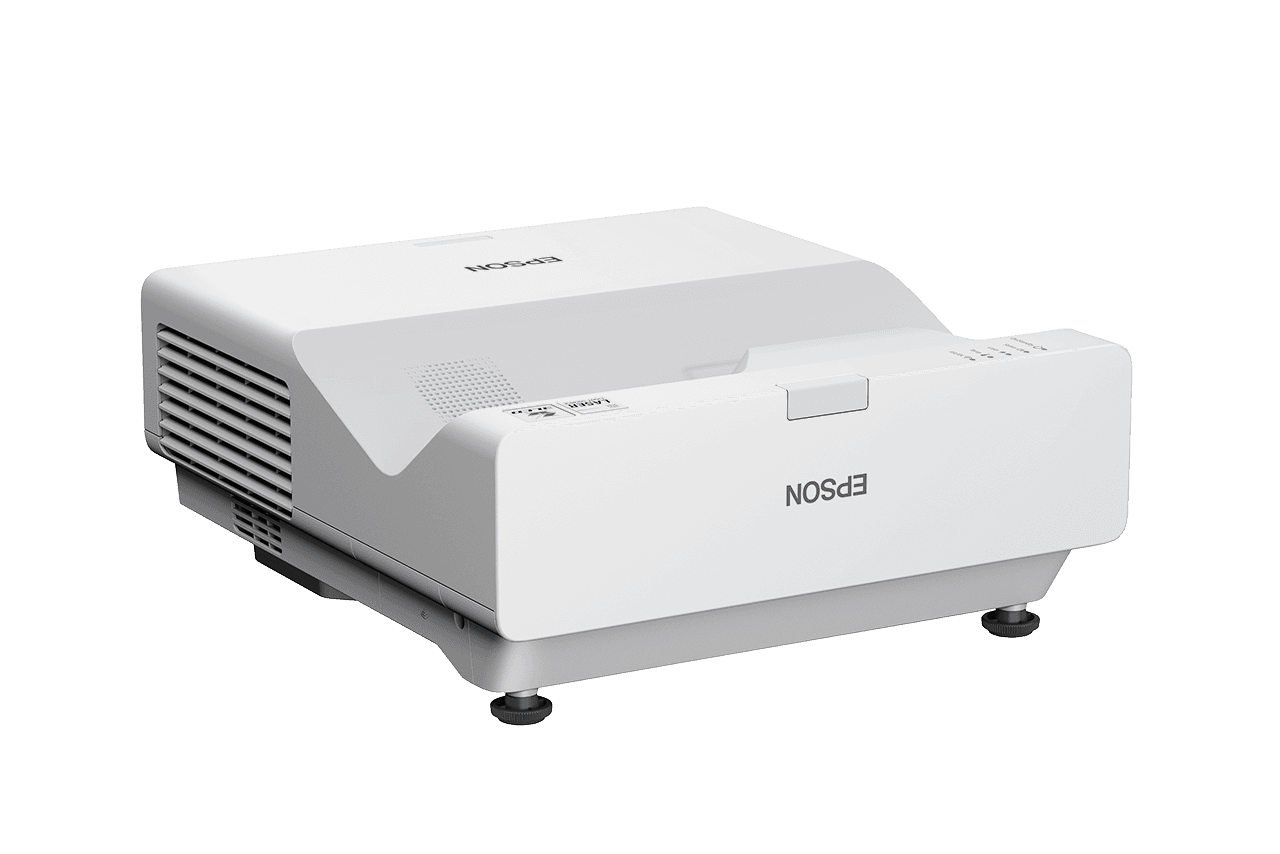

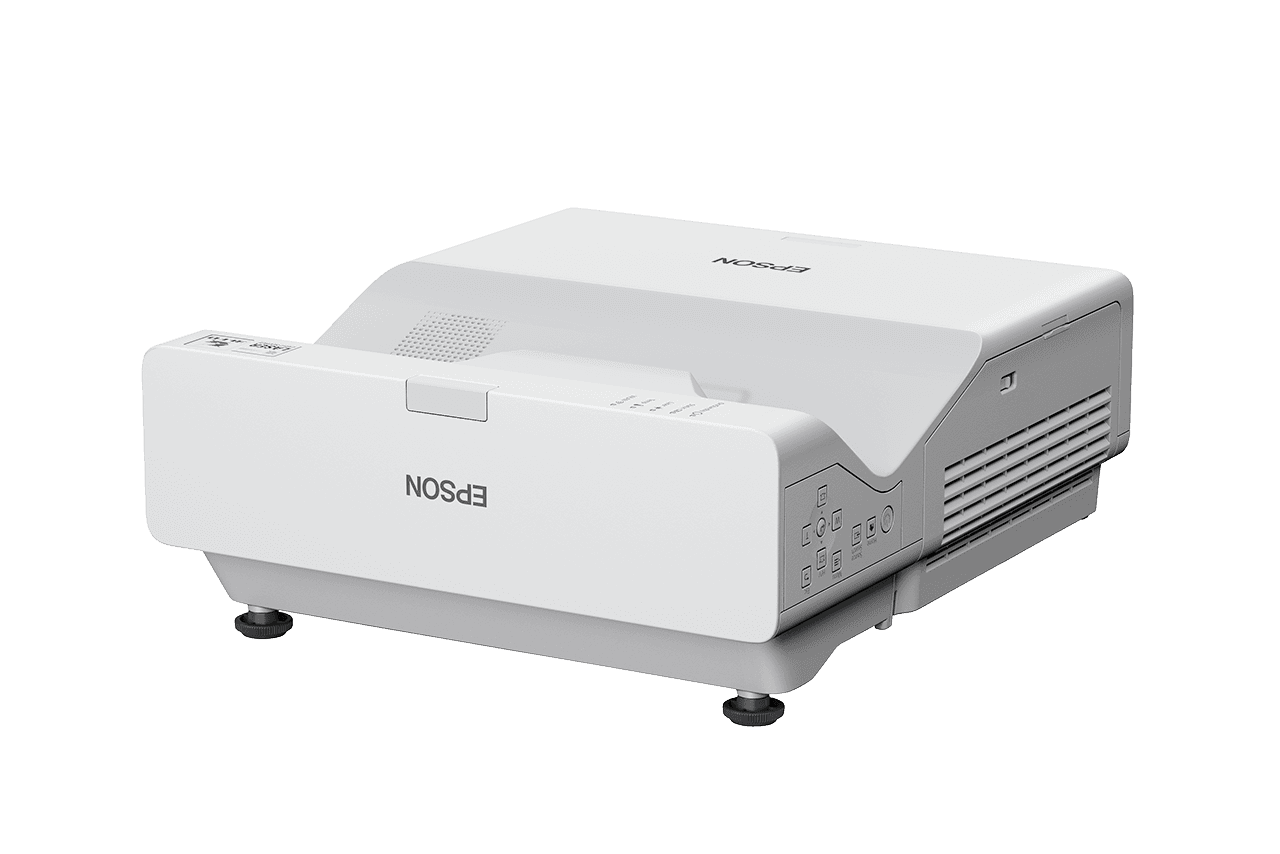

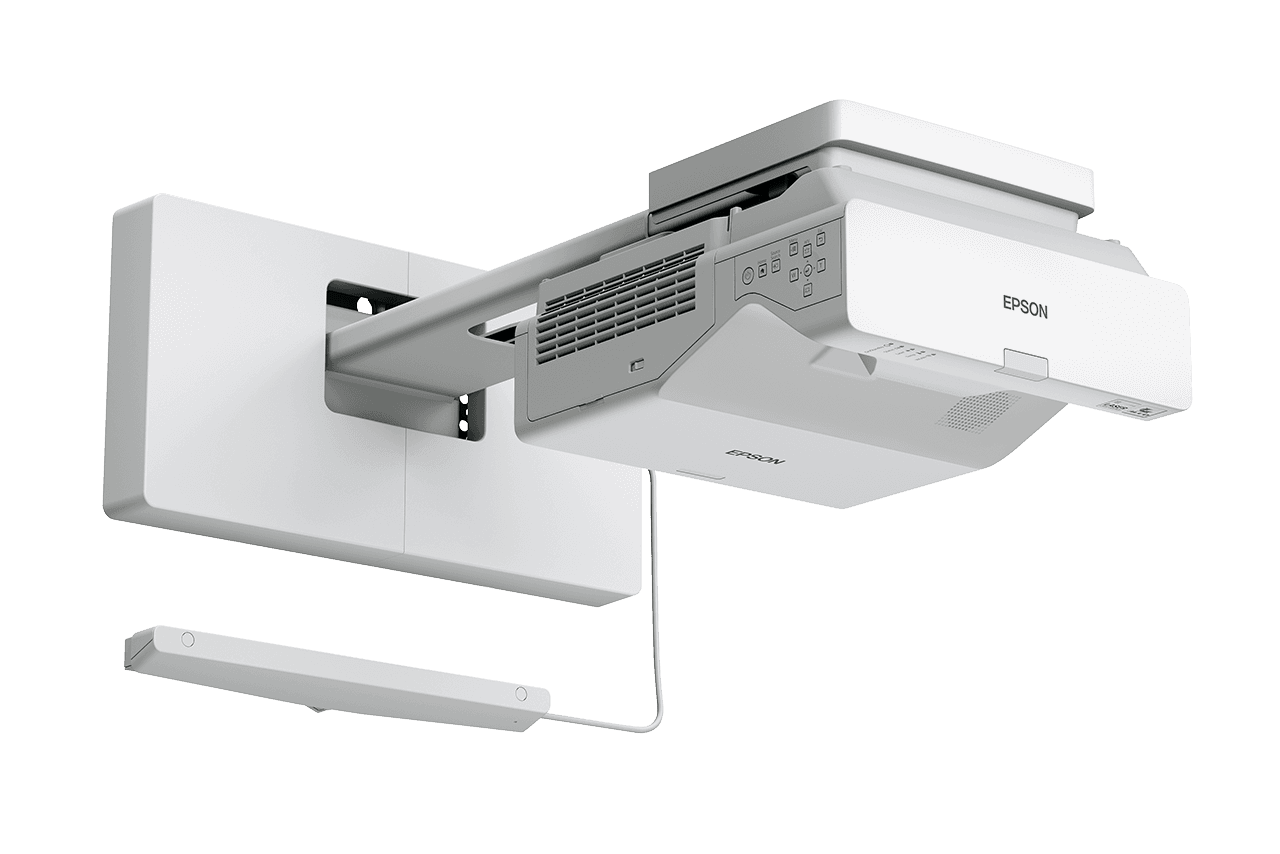

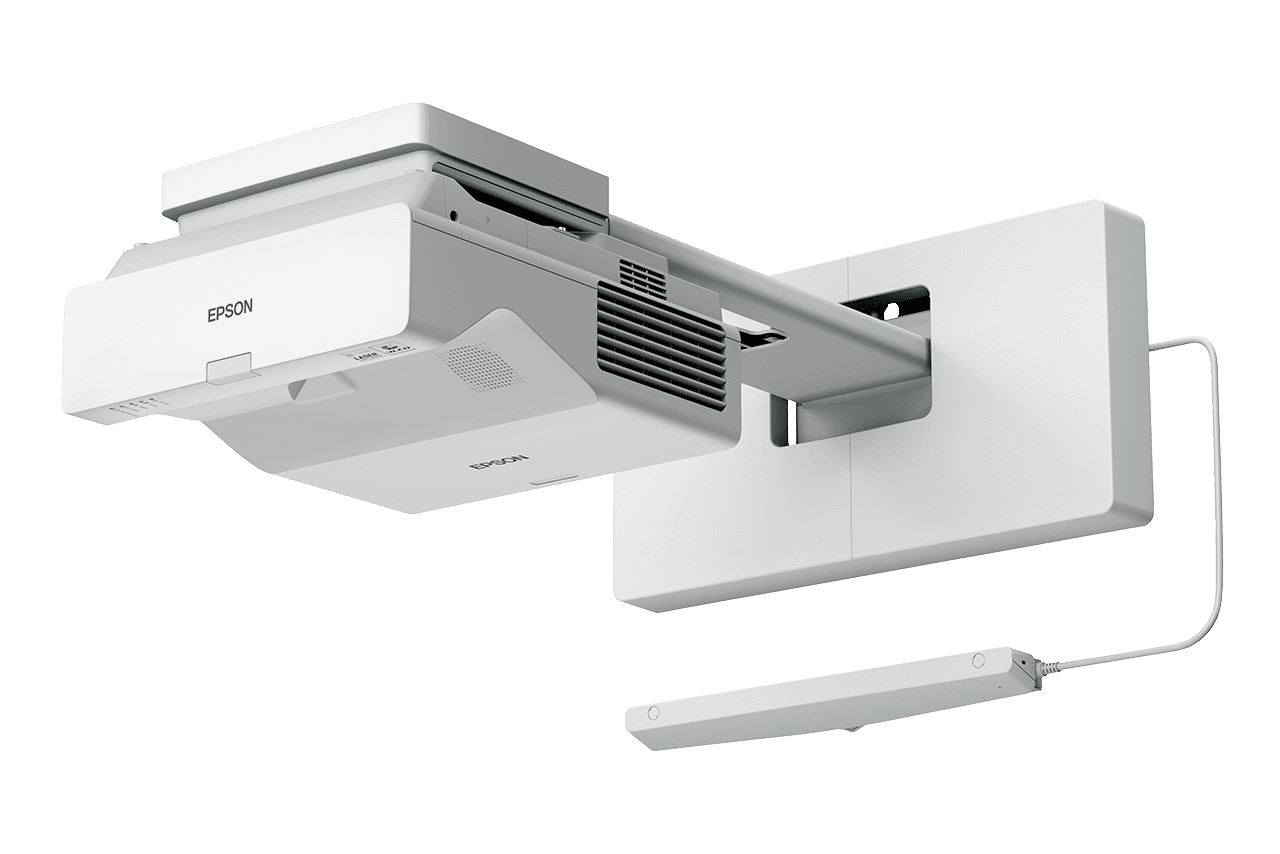

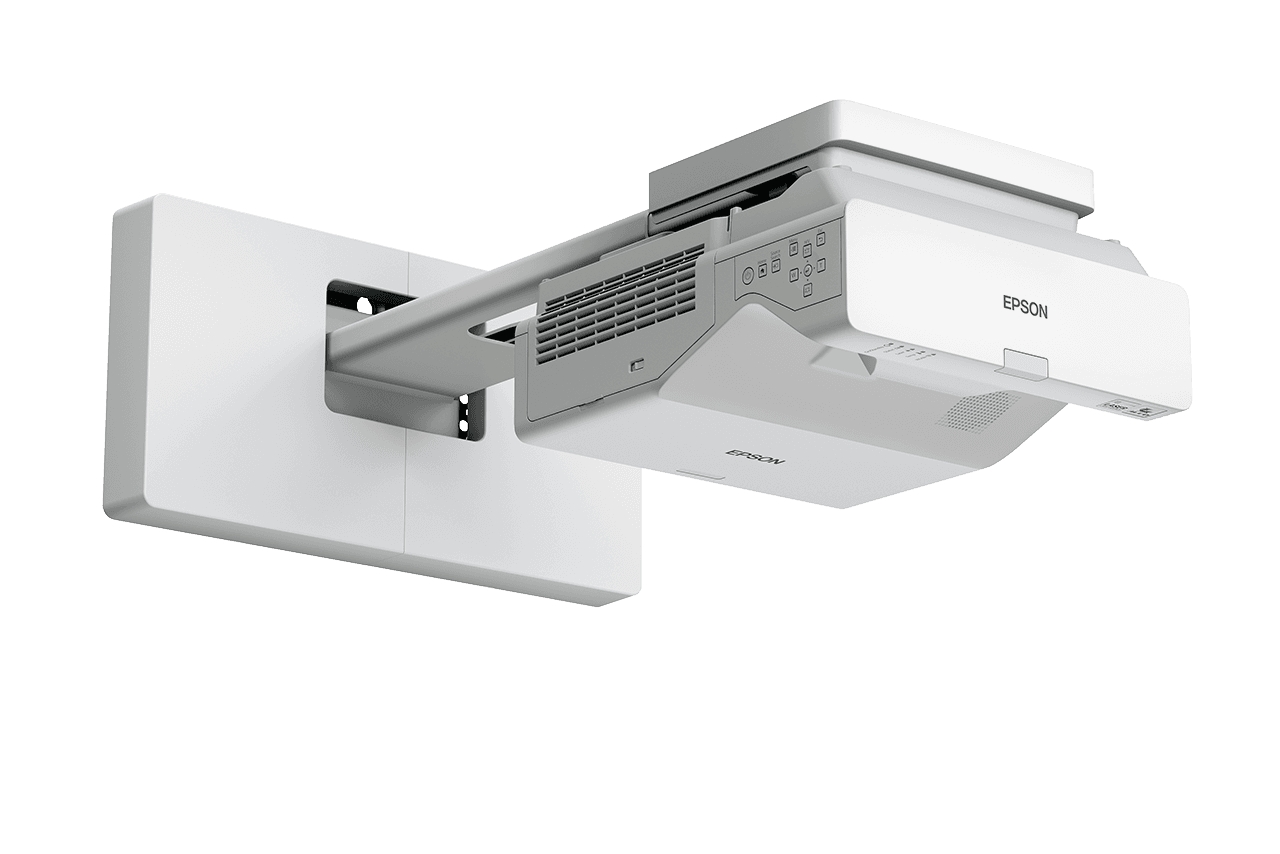

EB-760WI

Best for collaborative workspaces and classrooms. Ultra-short-throw interactive laser display with 4,100 lumens.

  • 53-100" HD touch display
  • 4,100 lumens CLO laser
  • Wireless connectivity

Features

Interactive HD display for any room

53-100" UST display for unrestricted viewing (no shadows/reflections)

Bright and energy efficient laser

4,100lm CLO with 3LCD technology for brighter colours at only 205W

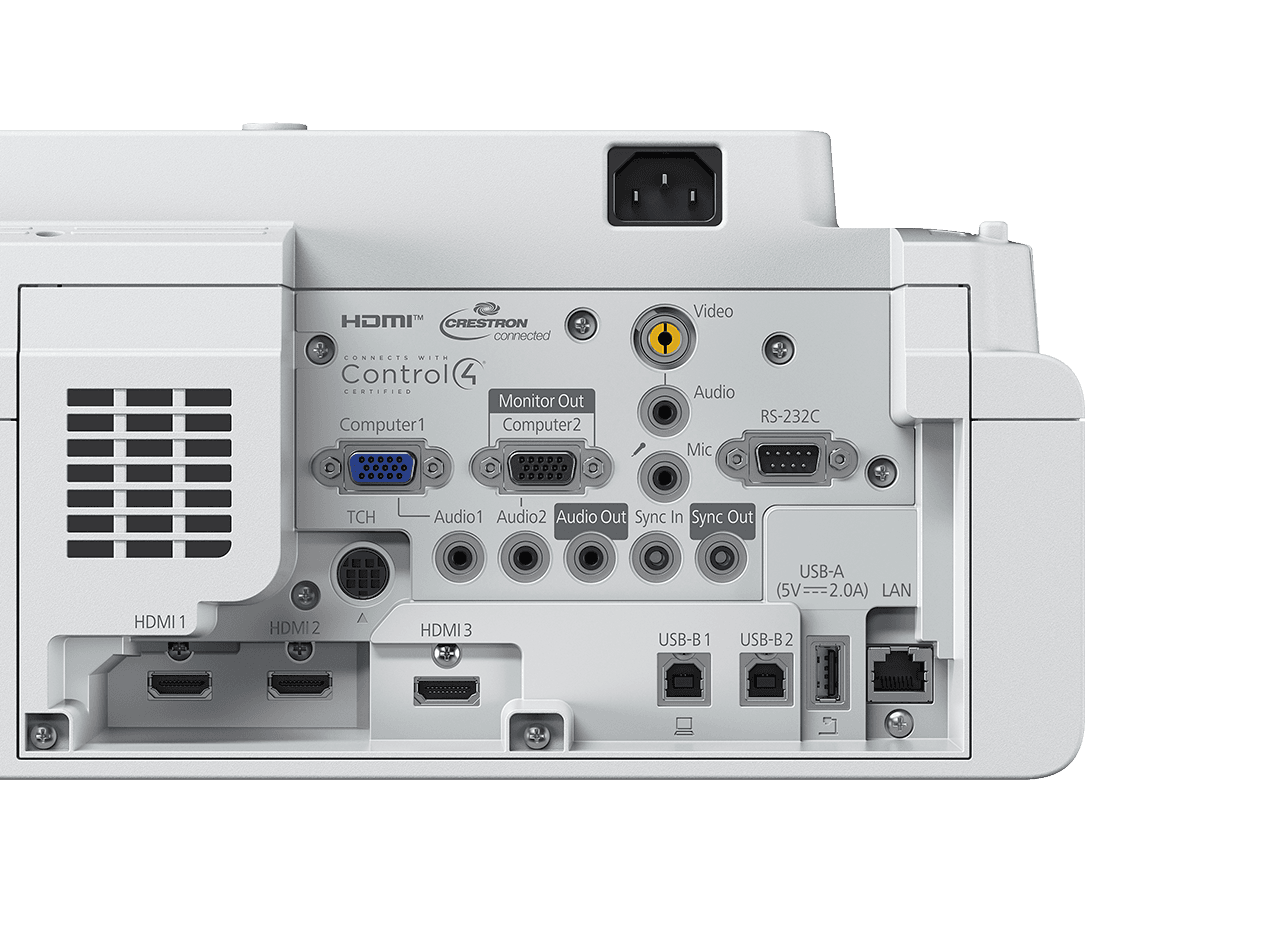

Effortless connectivity options

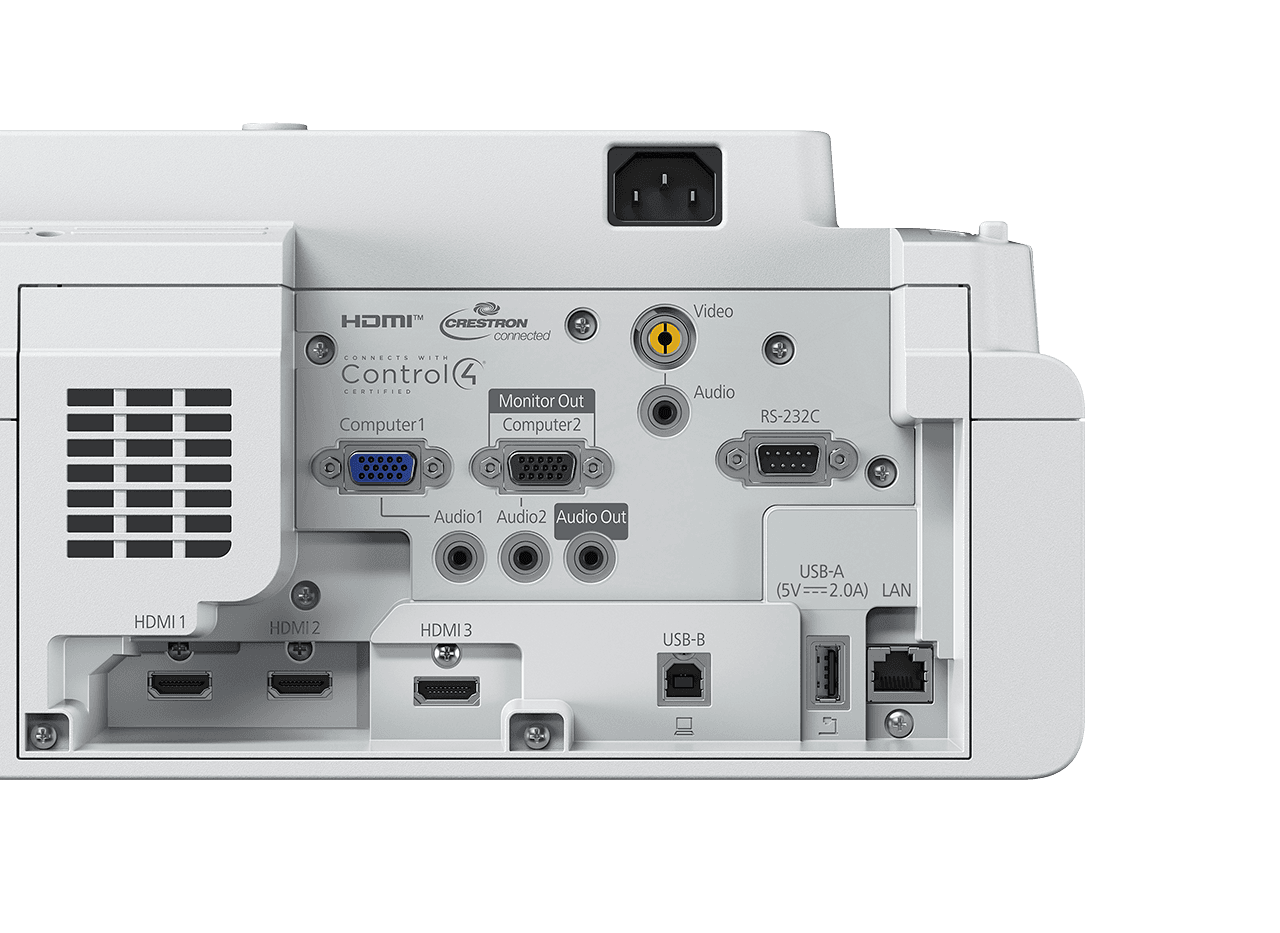

Auto-on, wired / wireless display with USB 2A output for smart sticks

Simple to use and built to last

Virtually maintenance free with 5-year, 12,000hr warranty

Specifications

Projector Colour
White
Heat Dissipation
895 BTUperhour
Loudspeaker
16 W
Noise Level -Normal
37 dB (A)
Noise Level -Economy
27 dB (A)
Options
Pen tip(Teflon)

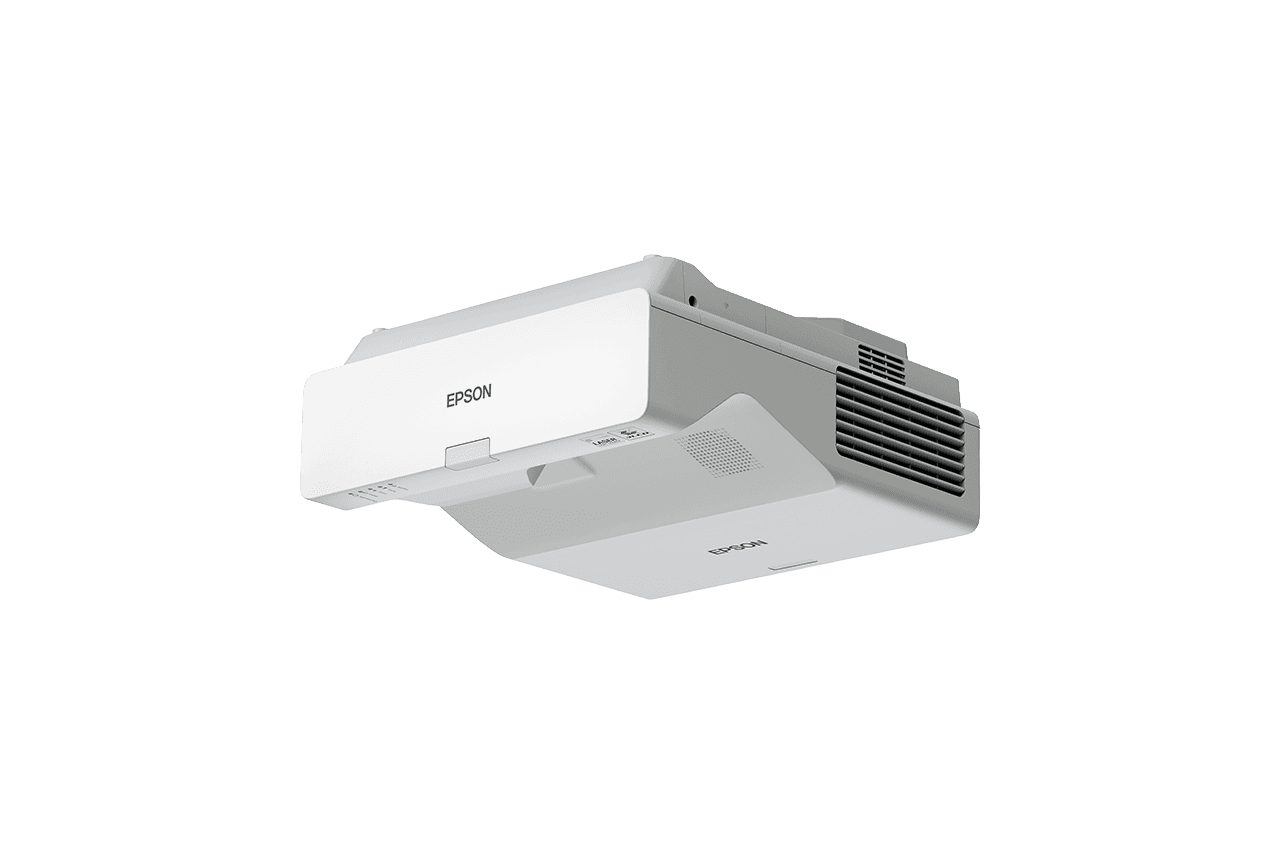

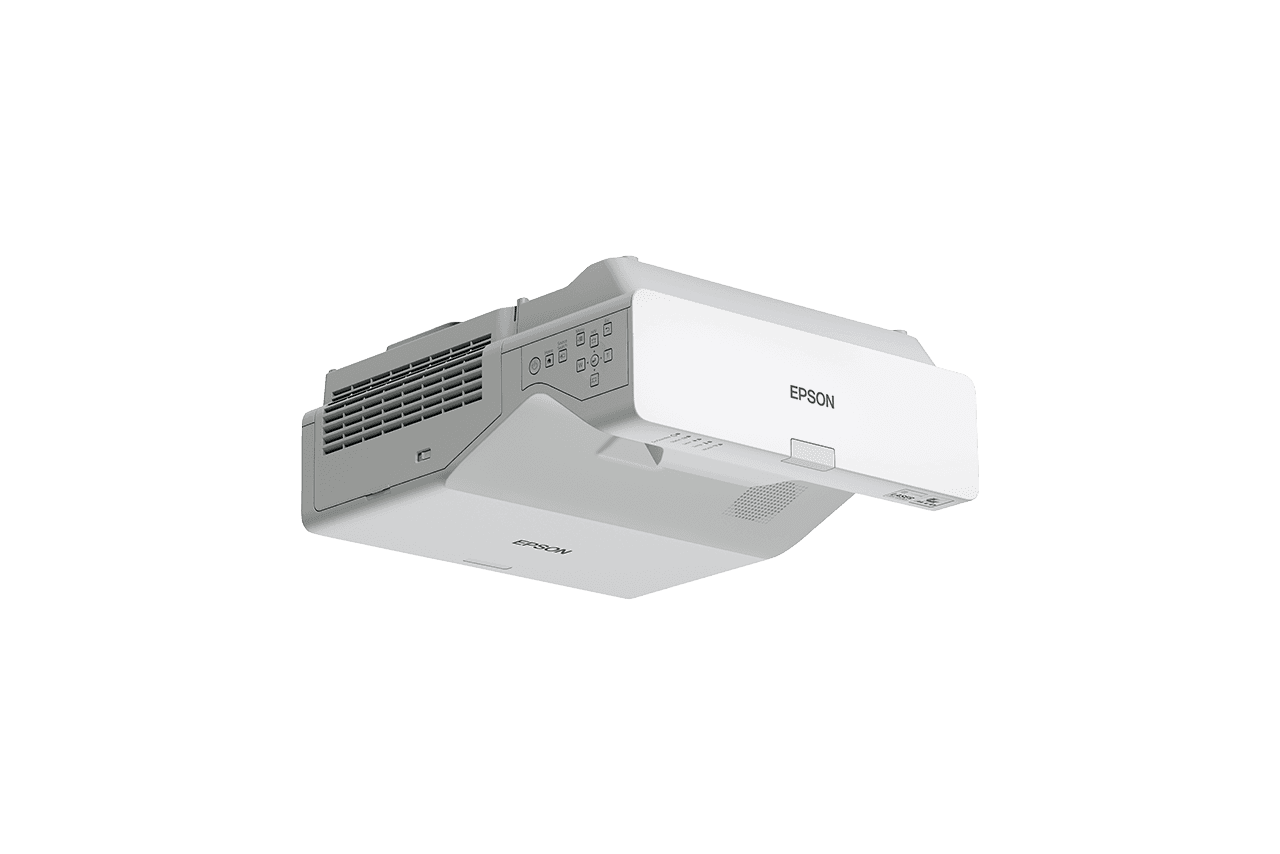

Positioning
Ceiling Mounted
Power consumption -(Normal On-Mode)
197 W
Power consumption- (Eco On-Mode)
263 W
Power consumption -(Normal Peak-mode)
199 W
Power consumption -(Eco Peak-Mode)
0.5 W
Power consumption - (Energy saving standby)
141 W
Product Dimensions
356 x 395 x 133 mm (Width x Depth x Height)
Product Range
E9
Room Type / Application
Meeting room / Classroom
Single Unit
ZN
Supply Voltage
100 V - 240 V, 50 Hz - 60 Hz
Supported Humidity - Operation (from)
20 %
Supported Humidity - Operation (to)
80 %
Supported Humidity - Storage (from)
10 %
Supported Humidity - Storage (to)
90 %
Supported Temperature - Operation (from)
0
Supported Temperature - Operation (to)
40
Supported Temperature - Storage (from)
-10 °C
Supported Temperature - Storage (to)
60 °C
TCO Certified
Yes

LCD Panel (Type)
0.59 inches with
LCD Panel
C2 Fine
Projection System
3LCD Technology
Resolution
WXGA

Android TV
No
Epson iProjection App
Ad-Hoc / Infrastructure
Google TV
No
Included Software
EasyMP Multi PC Projection
Network Protocol
IPv6
Network Protocol (Projector)
IPv6

Warranty (Months)
60 Months Carry-in
Warranty (Hours)
12000 hr

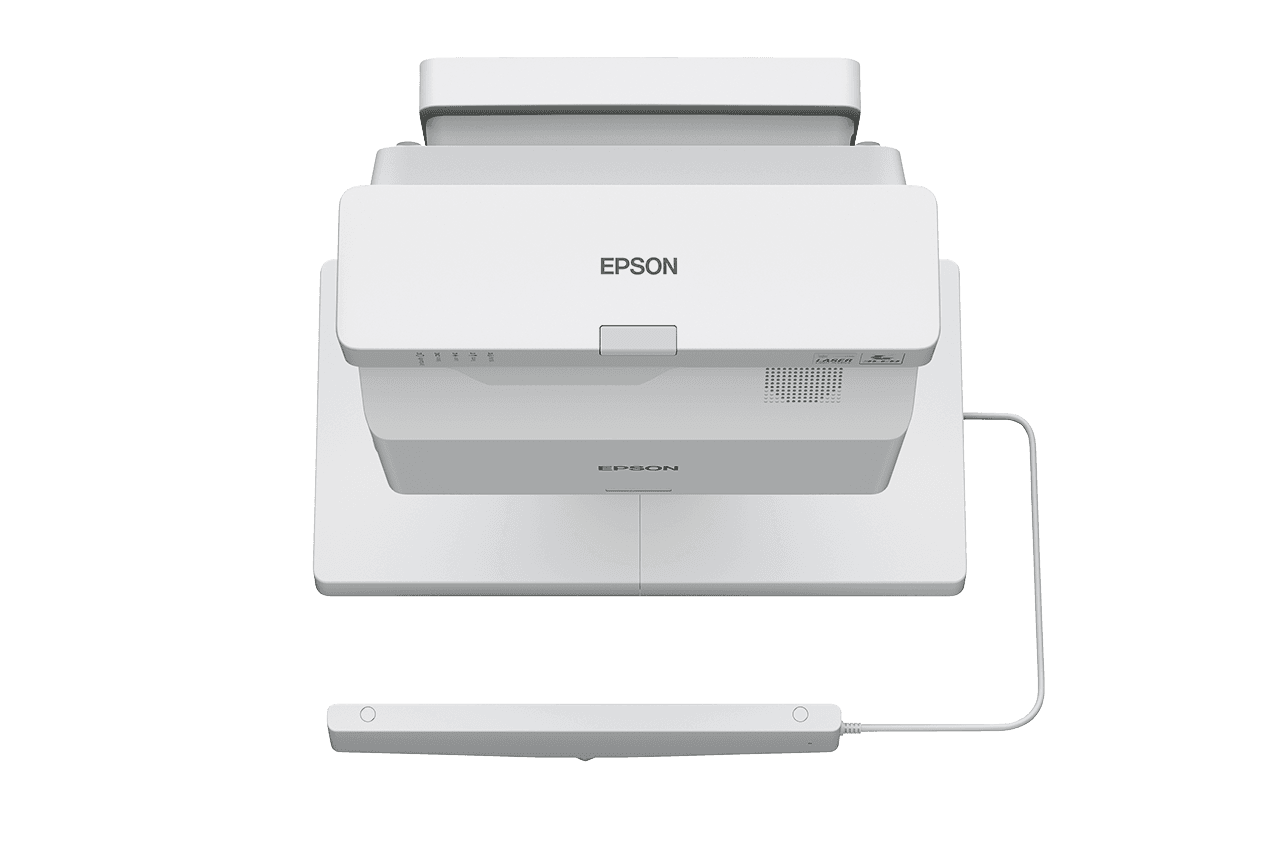

Interactivity
Yes - pen and finger-touch
Other features
A/V mute
Projector control
Crestron Integrated Partner
Sealed Light Source Module - Yes
No
Sealed Light Source Module - IP5X rated
n/a
Sealed Optical Engine - Yes
No
Sealed Optical Engine - IP5X rated
n/a
Security (Visual product)
Kensington lock
Video Colour Modes
Dynamic

Colour Light Output - Lumens
4100 Lumens
Colour Light Output - Luman (economy) in accodance with
2800 Lumens
Colour Light Output Testing Standard
In accordance with ISO 21118:2012
Colour Reproduction (Projector)
Upto 1.07 billion colours
Colour Video Processing
10 Bits Color
Contrast Ratio - Ratio:1
5000000
Contrast Ratio - Absolute black
Absolute black
High Definition
HD ready
Keystone Correction Type (Horizontal)
manual
Keystone Correction Angle (Horizontal)
3
Keystone Correction Type (Vertical)
manual
Keystone Correction Angle (Vertical)
3
Laser Lightsource -Durability High
20000 hr
Laser Lightsource -Durability Eco
30000 hr
Light Source (Visual product)
Laser
White Light Output - Lumens
2800 Lumens
White Light Output - Lumens (economy) in accodance with
2800 Lumens
White Light Output Testing Standard
In accordance with ISO 21118:2020

Interchangeable Lens
No
Lens
Optical
Lens (varies by lens)
n/a
Lens Shift (varies by lens)
n/a
Mechanical shutter
No
Offset
6
Offset - varies by lens
n/a
Projection Distance varies by lens
n/a
Projection Distance Wide varies by lens
n/a
Projection Distance Wide Tele varies by lens
n/a
Projection Lens F Number to
1.6
Projection Lens F Number varies by lens
n/a
Projection Lens Focal Length (To)
3.7 mm
Projection Lens Focal Length (varies by lens)
n/a
Projection Lens Focus
Manual
Projection Lens Focus (varies by lens)
n/a
Screen Size from
53 in
Screen Size to
100 in
Screen Size varies by lens
n/a
Throw Ratio from
0.27
Throw Ratio to
0.37
Type of Zoom
motorized
Zoom factor (from)
1
Zoom factor (to)
1.35
